| Chuck size |
|
| Swing over bed |
37.4" |
| Swing over carriage |
24.8" |
| Center distance |
59.06"-393.7" |
| Loading cap. Bet. Center (kg) |
3000 (6600 lbs) |
| Main motor |
- 25/20 HP
|
| Spindle speed |
2 Group 12-900 rpm |
| Spindle bore |
3.35" |
| Front bearing diameter |
|
| Tailstock taper |
MT No. 6 |
| Rapid feed speed |
X=59 Z=118 |
| Type of turret |
H4 |
| Machine weight (kg) |
- 5700 (12540 lbs) - 10800 (23760 lbs)
|
|
| Chuck size |
|
| Swing over bed |
37.4" |
| Swing over carriage |
24.8" |
| Center distance |
59.06"-393.7" |
| Loading cap. Bet. Center (kg) |
3000 (6600 lbs) |
| Main motor |
- 25/20 HP
|
| Spindle speed |
2 Group 12-900 rpm |
| Spindle bore |
4.92" |
| Front bearing diameter |
|
| Tailstock taper |
MT No. 6 |
| Rapid feed speed |
X=59 Z=118 |
| Type of turret |
H4 |
| Machine weight (kg) |
- 5700 (12540 lbs) - 10800 (23760 lbs)
|
|

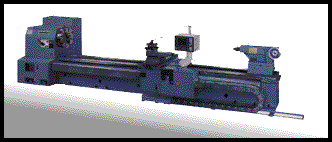

- DL95 and DL120 bed widths are 565mm and 635mm respectively. Beds are
induction-hardened (Hs67-74) deeply and ground precisely to ensure a long
life.
- Low-speed with high torque driving can be performed with 2-step gear
change in headstock.
- The tailstock and it's spindle are rigidly designed for heavy-duty
jobs. Maximum load capacity is 3000 kgs with an MT No. 6 center.
- The machine control funtion is basic and allows for 2-axis operation.
Operation is easy using a variety of menus.
|
- DL95 and DL120 bed widths are 565mm and 635mm respectively. Beds are
induction-hardened (Hs67-74) deeply and ground precisely to ensure a long
life.
- Low-speed with high torque driving can be performed with 2-step gear
change in headstock.
- The tailstock and it's spindle are rigidly designed for heavy-duty
jobs. Maximum load capacity is 3000 kgs with an MT No. 6 center.
- The machine control funtion is basic and allows for 2-axis operation.
Operation is easy using a variety of menus.
|
